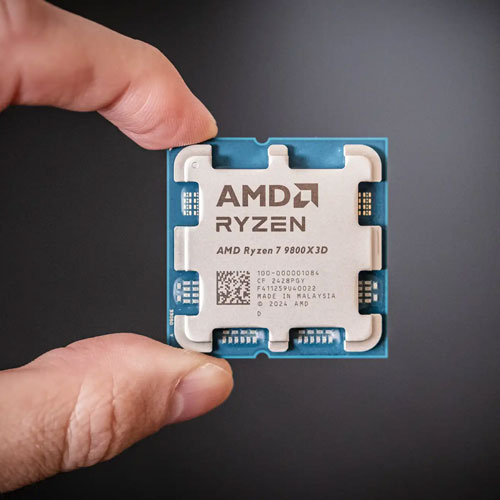

AMD Ryzen 7 9800X3D (8 Cores, 16 Threads) Up To 5.2GHz Desktop Processor(3 YEARS WARRANTY) -WITHOUT BOX
- » Brand :
- AMD
- » Part Number :
- 100-000001084
- » Processor Series :
- AMD Ryzen
- » CPU Socket Type :
- AMD AM5
- » Stock Availability :
- Out of stock
Price: 156,000.00
Description :
| General Specifications | |||||||||
| Name | AMD Ryzen™ 7 9800X3D | ||||||||
|
Family |
Ryzen | ||||||||
|
Series |
Ryzen 9000 Series | ||||||||
|
Form Factor |
Desktops , Boxed Processor | ||||||||
|
Market Segment |
Enthusiast Desktop | ||||||||
|
AMD PRO Technologies |
No | ||||||||
|
Consumer Use |
Yes | ||||||||
|
Regional Availability |
Global | ||||||||
|
Former Codename |
Granite Ridge AM5 | ||||||||
|
Architecture |
Zen 5 | ||||||||
|
# of CPU Cores |
8 | ||||||||
|
Multithreading (SMT) |
Yes | ||||||||
|
# of Threads |
16 | ||||||||
|
Max. Boost Clock |
Up to 5.2 GHz | ||||||||
|
Base Clock |
4.7 GHz | ||||||||
|
L1 Cache |
640 KB | ||||||||
|
L2 Cache |
8 MB | ||||||||
|
L3 Cache |
96 MB | ||||||||
|
Default TDP |
120W | ||||||||
|
Processor Technology for CPU Cores |
TSMC 4nm FinFET | ||||||||
|
Processor Technology for I/O Die |
TSMC 6nm FinFET | ||||||||
|
Package Die Count |
2 | ||||||||
|
Unlocked for Overclocking |
Yes | ||||||||
| AMD EXPO™ Memory Overclocking Technology | Yes | ||||||||
| Precision Boost Overdrive | Yes | ||||||||
| Curve Optimizer Voltage Offsets | Yes | ||||||||
| AMD Ryzen™ Master Support | Yes | ||||||||
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 | ||||||||
|
CPU Boost Technology |
Precision Boost 2 | ||||||||
|
Instruction Set |
x86-64 | ||||||||
|
Supported Extensions |
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 | ||||||||
|
Thermal Solution (PIB) |
Not Included | ||||||||
|
Recommended Cooler |
Liquid cooler recommended for optimal performance | ||||||||
|
Max. Operating Temperature (Tjmax) |
95°C | ||||||||
|
OS Support |
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit | ||||||||
| Connectivity | |||||||||
| Native USB 3.2 Gen 2 (10Gbps) | 4 | ||||||||
|
Native USB 2.0 (480Mbps) |
1 | ||||||||
|
PCI Express® Version |
PCIe® 5.0 | ||||||||
|
Native PCIe® Lanes (Total/Usable) |
28 , 24 | ||||||||
|
NVMe Support |
Boot , RAID0 , RAID1 , RAID5 , RAID10 | ||||||||
|
System Memory Type |
DDR5 | ||||||||
|
Memory Channels |
2 | ||||||||
|
Max. Memory |
192 GB | ||||||||
|
System Memory Subtype |
UDIMM | ||||||||
|
Max Memory Speed |
2x1R |
DDR5-5600 |
|||||||
|
2x2R |
DDR5-5600 |
||||||||
|
4x1R |
DDR5-3600 |
||||||||
|
4x2R |
DDR5-3600 |
||||||||
|
ECC Support |
Yes (Requires mobo support) | ||||||||
| Graphics Capabilities | |||||||||
| Graphics Model | AMD Radeon™ Graphics | ||||||||
|
Graphics Core Count |
2 | ||||||||
|
Graphics Frequency |
2200 MHz | ||||||||
|
USB Type-C® DisplayPort™ Alternate Mode |
Yes | ||||||||
| Key Features | |||||||||
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies | ||||||||
| Product IDs | |||||||||
| Product IDs | 100-100001084WOF | ||||||||
| Product ID Tray | 100-000001084 | ||||||||
