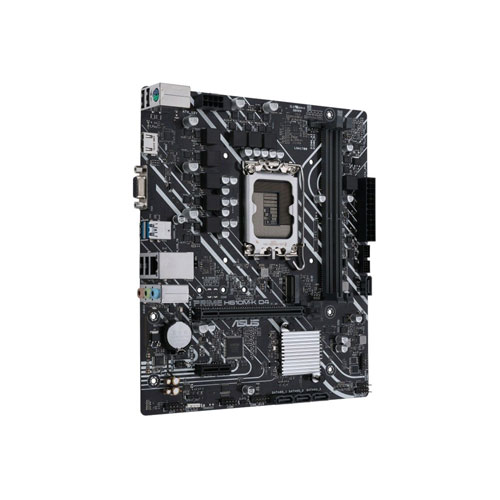

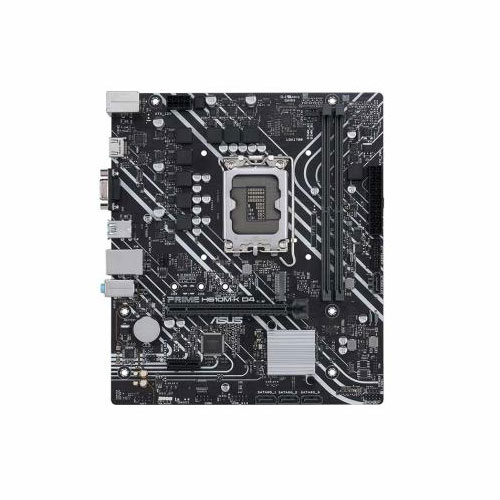

Asus Prime H610M-K D4 Motherboard ( 3 YEARS WARRANTY)
- » Brand :
- ASUS
- » Part Number :
- 90MB1A10-M2UAY0
- » Form Factor :
- Micro ATX
- » CPU Socket Type :
- LGA 1700 (12th,13th,14th GEN)
- » RAM TYPE :
- DDR4
- » Stock Availability :
- In stock
Price: 33,500.00
Description :
| Model | PRIME H610M-K D4 | |
| News & Updates | 2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th | |
| Gen desktop processors is now available. Please visit support site for the latest BIOS updates. | ||
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
|
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | ||
| Chipset | Intel® H610 Chipset | |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
|
| Dual Channel Memory Architecture | ||
| Supports Intel® Extreme Memory Profile (XMP) | ||
| * Actual memory data rate depends on the CPU types and DRAM modules, | ||
| Graphics | 1 x D-Sub port |
|
| 1 x HDMI® port | ||
| Graphics specifications may vary between CPU types. | ||
| ** Supports 4K@60Hz as specified in HDMI 2.1. | ||
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen)* |
|
| 1 x PCIe 4.0 x16 slot | ||
| Intel® H610 Chipset | ||
| 1 x PCIe 3.0 x1 slot | ||
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
|
| Intel® H610 Chipset | ||
| M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) | ||
| 4 x SATA 6Gb/s ports | ||
| The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the | ||
| M.2 slot, the SATA6G_4 port cannot be used. | ||
| Ethernet | 1 x Realtek 1Gb Ethernet | |
| USB | Rear USB (Total 6 ports) |
|
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | ||
| 4 x USB 2.0 ports (4 x Type-A) | ||
| Front USB (Total 4 ports) | ||
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | ||
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* | |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | ||
| Supports up to 24-Bit/192 kHz playback | ||
| Audio Features | ||
| Audio Shielding | ||
| Dedicated audio PCB layers | ||
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | ||
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | ||
| 1 x D-Sub port | ||
| 1 x HDMI® port | ||
| 1 x Realtek 1Gb Ethernet port | ||
| 3 x Audio jacks | ||
| 1 x PS/2 Keyboard/Mouse combo | ||
| port | ||
| Internal I/O Connectors | Fan and Cooling related | |
| 1 x 4-pin CPU Fan header | ||
| 1 x 4-pin Chassis Fan header | ||
| Power related | ||
| 1 x 24-pin Main Power connector | ||
| 1 x 8-pin +12V Power connector | ||
| Storage related | ||
| 1 x M.2 slot (Key M) | ||
| 4 x SATA 6Gb/s ports | ||
| USB | ||
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | ||
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | ||
| Miscellaneous | ||
| 1 x RGB header | ||
| 1 x Clear CMOS header | ||
| 1 x COM Port header | ||
| 1 x Front Panel Audio header (AAFP) | ||
| 1 x S/PDIF Out header | ||
| 1 x Speaker header | ||
| 1 x SPI TPM header (14-1pin) | ||
| 1 x 10-1 pin System Panel header | ||
| Special Features | ASUS 5X PROTECTION III | |
| DIGI+ VRM | ||
| LANGuard | ||
| Overvoltage Protection | ||
| SafeSlot Core | ||
| Stainless-Steel Back I/O | ||
| ASUS Q-Design | ||
| Q-DIMM | ||
| Q-Slot | ||
| ASUS Thermal Solution | ||
| Aluminum heatsink design | ||
| ASUS Lighting Control | ||
| RGB header | ||
| Software Features | ASUS Exclusive Software | |
| Armoury Crate | ||
| AI Suite 3 | ||
| Performance And Power Saving Utility | ||
| TurboV EVO | ||
| EPU | ||
| DIGI+ VRM | ||
| Fan Xpert | ||
| ASUS CPU-Z | ||
| Norton Anti-virus software (Free Trial version) | ||
| WinRAR | ||
| UEFI BIOS | ||
| ASUS EZ DIY | ||
| ASUS CrashFree BIOS 3 | ||
| ASUS EZ Flash 3 | ||
| ASUS UEFI BIOS EZ Mode | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | WOL by PME, PXE | |
| Accessories | Cables | |
| 2 x SATA 6Gb/s cables | ||
| Miscellaneous | ||
| 1 x I/O Shield | ||
| 1 x M.2 ANCHOR | ||
| Installation Media | ||
| 1 x Support DVD | ||
| Documentation | ||
| 1 x User Guide | ||
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit | |
| Form Factor | mATX Form Factor | |
| 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) | ||
