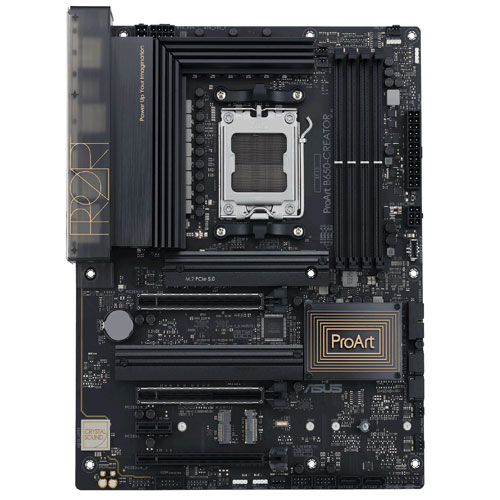

Asus ProArt B650 Creator DDR5 Motherboard ( 3 YEARS WARRANTY )
- » Brand :
- ASUS
- » Part Number :
- 90MB1C40-M0UAY0
- » Form Factor :
- ATX
- » CPU Socket Type :
- AMD AM5
- » RAM TYPE :
- DDR5
- » Stock Availability :
- Out of stock
Price: 99,000.00 123,000.00
Quantity
Rs.99,000.00
Description :
| Model | ProArt B650-CREATOR | |
|
CPU |
AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors* | |
| * Refer to www.asus.com for CPU support list. | ||
| AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* | ||
| * Refer to www.asus.com for CPU support list. | ||
| Chipset | AMD B650 | |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | ||
| Supports AMD Extended Profiles for Overclocking (EXPO™) | ||
| OptiMem II | ||
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | ||
| ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. | ||
| 4 x DIMM, Max. 128GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* | ||
| Dual Channel Memory Architecture | ||
| Supports AMD Extended Profiles for Overclocking (EXPO™) | ||
| OptiMem II | ||
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | ||
| ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. | ||
| Graphics | 1 x HDMITM port** | |
| 1 x USB Type-C® port supports DisplayPort output*** | ||
| * Graphics specifications may vary between CPU types. | ||
| ** Supports 4K@60Hz as specified in HDMI 2.1. | ||
| *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. | ||
| 1 x HDMI® port** | ||
| 1 x USB Type-C® port supports DisplayPort output*** | ||
| * Graphics specifications may vary between CPU types. | ||
| ** Supports 4K@60Hz as specified in HDMI 2.1. | ||
| *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. | ||
| Expansion Slots | AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors* | |
| 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)** | ||
| AMD B650 Chipset | ||
| 1 x PCIe 4.0 x16 slot (supports x4 mode)*** | ||
| 1 x PCIe 4.0 x1 slot | ||
| * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | ||
| ** Specifications vary by CPU types. | ||
| *** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. | ||
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | ||
| AMD Ryzen™ 7000 Series Desktop Processors* | ||
| 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) | ||
| AMD B650 Chipset | ||
| 1 x PCIe 4.0 x16 slot (supports x4 mode)** | ||
| 1 x PCIe 4.0 x1 slot | ||
| * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | ||
| ** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. | ||
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | ||
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* | |
| AMD Ryzen™ 7000 Series Desktop Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | ||
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | ||
| AMD Ryzen™ 8000 Series Desktop Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | ||
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** | ||
| AMD B650 Chipset | ||
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** | ||
| 4 x SATA 6Gb/s ports | ||
| *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | ||
| ** Specifications vary by CPU types. | ||
| *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. | ||
| Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* | ||
| AMD Ryzen™ 7000 Series Desktop Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | ||
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | ||
| AMD B650 Chipset | ||
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** | ||
| 4 x SATA 6Gb/s ports | ||
| *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | ||
| ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. | ||
| Ethernet | 1 x Realtek 2.5Gb Ethernet | |
| 1 x Realtek 1Gb Ethernet | ||
| ASUS LANGuard | ||
| Wireless & Bluetooth | M.2 slot only (Key E, PCIe)* | |
| *Wi-Fi module is sold separately. | ||
| USB | Rear USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output ) | ||
| 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) | ||
| 2 x USB 2.0 ports (2 x Type-A) | ||
| Front USB (Total 7 ports) | ||
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+) | ||
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | ||
| Audio | ||
| Realtek 7.1 Surround Sound High Definition Audio CODEC | ||
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | ||
| - Supports up to 24-Bit/192 kHz playback" | ||
| Audio Features | ||
| - Power pre-regulator reduces power input noise to ensure consistent performance | ||
| - Rear optical S/PDIF out port | ||
| - Premium audio capacitors | ||
| - Dedicated audio PCB layers | ||
| - Audio cover | ||
| - Unique de-pop circuit | ||

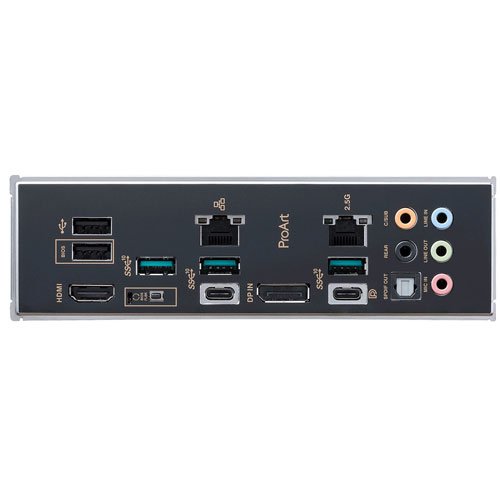

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output ) | |
| 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) | ||
| 2 x USB 2.0 ports (2 x Type-A) | ||
| 1 x DisplayPort (Input only) | ||
| 1 x HDMI® port | ||
| 1 x Realtek 2.5Gb Ethernet | ||
| 1 x Realtek 1Gb Ethernet | ||
| 5 x Audio jacks | ||
| 1 x Optical S/PDIF out port | ||
| 1 x BIOS FlashBack™ button | ||
| Internal I/O Connectors | ||
| I/O ConnectorsFan and Cooling related | ||
| 1 x 4-pin CPU Fan header | ||
| 1 x 4-pin CPU OPT Fan header | ||
| 1 x 4-pin AIO Pump header | ||
| 4 x 4-pin Chassis Fan headers | ||
| Power related | ||
| 1 x 24-pin Main Power connector | ||
| 1 x 8-pin +12V Power connector | ||
| 1 x 4-pin +12V Power connector | ||
| 1 x 6-pin PCIe Power connector | ||
| Storage related | ||
| 3 x M.2 slots (Key M) | ||
| 4 x SATA 6Gb/s ports | ||
| USB | ||
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | ||
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | ||
| Miscellaneous | ||
| 3 x Addressable Gen 2 headers | ||
| 1 x Aura RGB header | ||
| 1 x Clear CMOS header | ||
| 1 x COM Port header | ||
| 1 x Front Panel Audio header (AAFP) | ||
| 1 x M.2 slot (Key E) | ||
| 1 x 20-5 pin System Panel header | ||
| 1 x Thermal Sensor header | ||
| 1 x Thunderbolt™ (USB4®) header | ||
| Special Features | ASUS 5X PROTECTION III | |
| - DIGI+ VRM (- Digital power design with DrMOS) | ||
| - Enhanced DRAM Overcurrent Protection | ||
| - ESD Guards | ||
| - LANGuard | ||
| - Overvoltage Protection | ||
| - Safeslot | ||
| - Stainless-Steel Back I/O | ||
| ASUS Q-Design | ||
| - M.2 Q-Latch | ||
| - Q-Connector | ||
| - Q-DIMM | ||
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | ||
| - Q-Slot | ||
| ASUS Thermal Solution | ||
| - M.2 heatsinks | ||
| - VRM heatsink design | ||
| ASUS EZ DIY | ||
| - BIOS FlashBack™ button | ||
| - BIOS FlashBack™ LED | ||
| - ProCool | ||
| - Pre-mounted I/O shield | ||
| - SafeSlot | ||
| - SafeDIMM | ||
| AURA Sync | ||
| - Aura RGB header | ||
| - Addressable Gen 2 headers | ||
| Bespoke Motherboard Design & Business Focused Features | ||
| - 24/7 Reliability | ||
| - Overcurrent Protection | ||
| Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support | ||
| - Support: up to 60W charging* | ||
| - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | ||
| - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS | ||
| * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported. | ||
| Software Features | ASUS Exclusive Software | |
| Armoury Crate | ||
| - Aura Creator | ||
| - Aura Sync | ||
| - Fan Xpert 4 | ||
| - Power Saving | ||
| - Two-Way AI Noise Cancellation | ||
| AI Suite 3 | ||
| - TurboV EVO | ||
| - DIGI+ VRM | ||
| - PC Cleaner | ||
| ASUS CPU-Z | ||
| IT Management software supported | ||
| - ASUS Control Center Express(ACCE) | ||
| CreationFirst | ||
| Norton Anti-virus software (Free Trial version) | ||
| ProArt Creator Hub | ||
| WinRAR | ||
| UEFI BIOS | ||
| ASUS EZ DIY | ||
| - ASUS CrashFree BIOS 3 | ||
| - ASUS EZ Flash 3 | ||
| - ASUS UEFI BIOS EZ Mode | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | WOL by PME, PXE | |
| Accessories | Cables | |
| 1 x DisplayPort cable | ||
| 2 x SATA 6Gb/s cables | ||
| Miscellaneous | ||
| 1 x Q-connector | ||
| 1 x Rubber Packages for M.2 | ||
| 1 x Screw packages for M.2 SSD | ||
| 1 x Screw package for M.2 Key E | ||
| 1 x ProArt ruler | ||
| Documentation | ||
| 1 x ACC Express Activation Key Card | ||
| 1 x User guide | ||
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit | |
| Form Factor | ||
| ATX Form Factor | ||
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ||
