Asus TUF Gaming X570 PRO (WI FI)II Motherboard
- » Brand :
- ASUS
- » Part Number :
- 90MB19Z0-M0UAY0
- » Form Factor :
- ATX
- » CPU Socket Type :
- AMD AM4
- » Stock Availability :
- Out of stock
Price: 92,000.00
Description :
CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors | ||||||||||||||||||||||||
Chipset | X570 | ||||||||||||||||||||||||
Memory |
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MT/s Un-buffered Memory |
||||||||||||||||||||||||
Dual Channel Memory Architecture | |||||||||||||||||||||||||
ECC Memory (ECC mode) support varies by CPU. | |||||||||||||||||||||||||
* The maximum memory capacity supported vary depending on the CPU you installed. | |||||||||||||||||||||||||
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |||||||||||||||||||||||||
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 Un-buffered Memory |
|||||||||||||||||||||||||
Graphics | Integrated Graphics in AMD Ryzen™ 5000 | ||||||||||||||||||||||||
G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors | |||||||||||||||||||||||||
1 x DisplayPort 1.2 | |||||||||||||||||||||||||
1 x HDMI® 1.4b | |||||||||||||||||||||||||
Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @60Hz | |||||||||||||||||||||||||
Supports HDMI 1.4b with max. resolution 4096 x 2160 @24Hz | |||||||||||||||||||||||||
Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @60Hz |
|||||||||||||||||||||||||
Supports HDMI 1.4b with max. resolution 4096 x 2160 @24Hz |
|||||||||||||||||||||||||
Expansion Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors | ||||||||||||||||||||||||
1 x PCIe 4.0 x16 (x16 mode) | |||||||||||||||||||||||||
AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors | |||||||||||||||||||||||||
1 x PCIe 3.0 x16 (x16 mode) | |||||||||||||||||||||||||
AMD Ryzen™ 3000 G-Series / 2000 G-Series Processors | |||||||||||||||||||||||||
1 x PCIe 3.0/2.0 x16 (x8 mode) | |||||||||||||||||||||||||
AMD X570 chipset | |||||||||||||||||||||||||
1 x PCIe 4.0 x16 (max at x4 mode) | |||||||||||||||||||||||||
2 x PCIe 4.0 x1 | |||||||||||||||||||||||||
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors | |||||||||||||||||||||||||
1 x PCIe 4.0 x16 (x16 mode) | |||||||||||||||||||||||||
AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors | |||||||||||||||||||||||||
1 x PCIe 3.0 x16 (x16 mode) | |||||||||||||||||||||||||
AMD Ryzen™ 3000 G-Series / 2000 G-Series Processors | |||||||||||||||||||||||||
1 x PCIe 3.0/2.0 x16 (x8 mode) | |||||||||||||||||||||||||
AMD X570 chipset | |||||||||||||||||||||||||
1 x PCIe 4.0 x16 (max at x4 mode) | |||||||||||||||||||||||||
2 x PCIe 4.0 x1 | |||||||||||||||||||||||||
Storage | Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports | ||||||||||||||||||||||||
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors | |||||||||||||||||||||||||
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |||||||||||||||||||||||||
AMD Ryzen™ 5000 G-Series/ 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors | |||||||||||||||||||||||||
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | |||||||||||||||||||||||||
AMD X570 chipset | |||||||||||||||||||||||||
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |||||||||||||||||||||||||
8 x SATA 6Gb/s ports | |||||||||||||||||||||||||
Support Raid 0, 1, 10 | |||||||||||||||||||||||||
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors | |||||||||||||||||||||||||
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |||||||||||||||||||||||||
AMD Ryzen™ 5000 G-Series/ 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors | |||||||||||||||||||||||||
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | |||||||||||||||||||||||||
AMD X570 chipset | |||||||||||||||||||||||||
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |||||||||||||||||||||||||
8 x SATA 6Gb/s ports | |||||||||||||||||||||||||
Support Raid 0, 1, 10 | |||||||||||||||||||||||||
Ethernet | 1 x Intel® 2.5Gb Ethernet | ||||||||||||||||||||||||
TUF LANGuard | |||||||||||||||||||||||||
Wireless & Bluetooth | 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | ||||||||||||||||||||||||
Supports 2.4/5/6GHz frequency band* | |||||||||||||||||||||||||
Bluetooth v5.2 | |||||||||||||||||||||||||
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |||||||||||||||||||||||||
USB | Rear USB:Total 7 ports | ||||||||||||||||||||||||
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) | |||||||||||||||||||||||||
4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |||||||||||||||||||||||||
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) | |||||||||||||||||||||||||
4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |||||||||||||||||||||||||
Front USB:Total 7 ports | |||||||||||||||||||||||||
1 x USB 3.2 Gen 2 front panel connector(s) (support(s) USB Type-C®) | |||||||||||||||||||||||||
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |||||||||||||||||||||||||
<span ",sans-serif;minor-latin;="" "="" times="" new="" "="" style='font-variant-ligatures: normal;font-variant-caps: normal; orphans: 2;text-align:start;widows: 2;-webkit-text-stroke-width: 0px; text-decoration-thickness: initial;text-decoration-style: initial;text-decoration-color: initial'>2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |||||||||||||||||||||||||
1 x USB 3.2 Gen 2 front panel connector(s) (support(s) USB Type-C®) | |||||||||||||||||||||||||
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |||||||||||||||||||||||||
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |||||||||||||||||||||||||
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* | ||||||||||||||||||||||||
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |||||||||||||||||||||||||
- Supports up to 24-Bit/192 kHz playback | |||||||||||||||||||||||||
Audio Features | |||||||||||||||||||||||||
- Audio Shielding | |||||||||||||||||||||||||
- Rear optical S/PDIF out port | |||||||||||||||||||||||||
- Premium audio capacitors | |||||||||||||||||||||||||
- Dedicated audio PCB layers | |||||||||||||||||||||||||
- Audio cover | |||||||||||||||||||||||||
Realtek 7.1 Surround Sound High Definition Audio CODEC* | |||||||||||||||||||||||||
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |||||||||||||||||||||||||
- Supports up to 24-Bit/192 kHz playback" | |||||||||||||||||||||||||
Audio Features | |||||||||||||||||||||||||
- Audio Shielding | |||||||||||||||||||||||||
- Rear optical S/PDIF out port | |||||||||||||||||||||||||
- Premium audio capacitors | |||||||||||||||||||||||||
- Dedicated audio PCB layers | |||||||||||||||||||||||||
<span ",sans-serif;minor-latin;="" "times="" new="" "="" style='font-variant-ligatures: normal;font-variant-caps: normal; orphans: 2;text-align:start;widows: 2;-webkit-text-stroke-width: 0px; text-decoration-thickness: initial;text-decoration-style: initial;text-decoration-color: initial'>- Audio cover | |||||||||||||||||||||||||

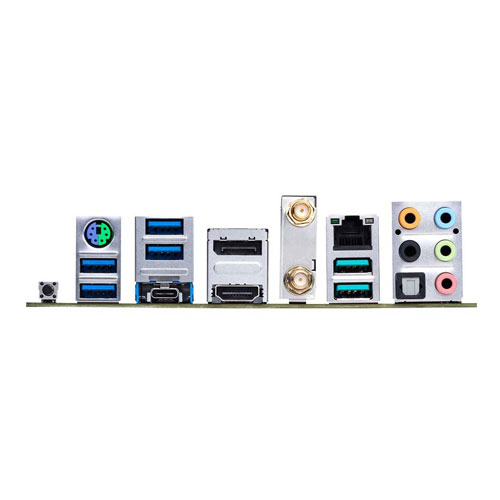

Back Panel I/O Ports | 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) | ||||||||||||||||||||||||
4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |||||||||||||||||||||||||
1 x DisplayPort | |||||||||||||||||||||||||
1 x HDMI® port | |||||||||||||||||||||||||
1 x Wi-Fi Module | |||||||||||||||||||||||||
1 x Intel® 2.5Gb Ethernet port | |||||||||||||||||||||||||
5 x Audio jacks | |||||||||||||||||||||||||
1 x Optical S/PDIF out port | |||||||||||||||||||||||||
1 x BIOS FlashBack™ button | |||||||||||||||||||||||||
1 x PS/2 Keyboard/Mouse combo port | |||||||||||||||||||||||||
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) | |||||||||||||||||||||||||
4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |||||||||||||||||||||||||
1 x DisplayPort | |||||||||||||||||||||||||
1 x HDMI® port | |||||||||||||||||||||||||
1 x Wi-Fi Module | |||||||||||||||||||||||||
1 x Intel® 2.5Gb Ethernet port | |||||||||||||||||||||||||
5 x Audio jacks | |||||||||||||||||||||||||
1 x Optical S/PDIF out port | |||||||||||||||||||||||||
1 x BIOS FlashBack™ button | |||||||||||||||||||||||||
<span ",sans-serif;minor-latin;="" "times="" new="" "="" style='font-variant-ligatures: normal;font-variant-caps: normal; orphans: 2;text-align:start;widows: 2;-webkit-text-stroke-width: 0px; text-decoration-thickness: initial;text-decoration-style: initial;text-decoration-color: initial'>1 x PS/2 Keyboard/Mouse combo port | |||||||||||||||||||||||||
Internal I/O Connectors | Fan and Cooling related | ||||||||||||||||||||||||
1 x 4-pin CPU Fan header(s) | |||||||||||||||||||||||||
1 x 4-pin CPU OPT Fan header(s) | |||||||||||||||||||||||||
1 x 4-pin AIO Pump header(s) | |||||||||||||||||||||||||
3 x 4-pin Chassis Fan header(s) | |||||||||||||||||||||||||
Power related | |||||||||||||||||||||||||
1 x 24-pin Main Power connector | |||||||||||||||||||||||||
1 x 8-pin +12V Power connector | |||||||||||||||||||||||||
1 x 4-pin +12V Power connector | |||||||||||||||||||||||||
Storage related | |||||||||||||||||||||||||
2 x M.2 slots (Key M) | |||||||||||||||||||||||||
8 x SATA 6Gb/s ports | |||||||||||||||||||||||||
USB | |||||||||||||||||||||||||
1 x USB 3.2 Gen 2 Front Panel connector (support(s) USB Type-C®) | |||||||||||||||||||||||||
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |||||||||||||||||||||||||
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |||||||||||||||||||||||||
Miscellaneous | |||||||||||||||||||||||||
1 x Addressable Gen 2 header(s) | |||||||||||||||||||||||||
2 x AURA RGB header(s) | |||||||||||||||||||||||||
1 x Clear CMOS header | |||||||||||||||||||||||||
1 x COM Port header | |||||||||||||||||||||||||
1 x Front Panel Audio header (AAFP) | |||||||||||||||||||||||||
1 x SPI TPM header (14-1pin) | |||||||||||||||||||||||||
20-5 pin System Panel header | |||||||||||||||||||||||||
Special Features | ASUS TUF PROTECTION | ||||||||||||||||||||||||
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) | |||||||||||||||||||||||||
- ASUS Enhanced DRAM Overcurrent Protection | |||||||||||||||||||||||||
- ASUS ESD Guards | |||||||||||||||||||||||||
- TUF LANGuard | |||||||||||||||||||||||||
- ASUS Overvoltage Protection | |||||||||||||||||||||||||
- ASUS SafeSlot | |||||||||||||||||||||||||
- ASUS Stainless-Steel Back I/O | |||||||||||||||||||||||||
ASUS Q-Design | |||||||||||||||||||||||||
- M.2 Q-Latch | |||||||||||||||||||||||||
- ASUS Q-DIMM | |||||||||||||||||||||||||
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |||||||||||||||||||||||||
- ASUS Q-Slot | |||||||||||||||||||||||||
ASUS Thermal Solution | |||||||||||||||||||||||||
- Aluminum M.2 heatsink | |||||||||||||||||||||||||
- Aluminum heatsink design | |||||||||||||||||||||||||
ASUS EZ DIY | |||||||||||||||||||||||||
- BIOS FlashBack™ button | |||||||||||||||||||||||||
- BIOS FlashBack™ LED | |||||||||||||||||||||||||
- Procool | |||||||||||||||||||||||||
AURA Sync | |||||||||||||||||||||||||
- AURA RGB header(s) | |||||||||||||||||||||||||
- Addressable Gen 2 RGB header(s) | |||||||||||||||||||||||||
ASUS TUF PROTECTION | |||||||||||||||||||||||||
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) | |||||||||||||||||||||||||
- ASUS Enhanced DRAM Overcurrent Protection | |||||||||||||||||||||||||
- ASUS ESD Guards | |||||||||||||||||||||||||
- TUF LANGuard | |||||||||||||||||||||||||
- ASUS Overvoltage Protection | |||||||||||||||||||||||||
- ASUS SafeSlot | |||||||||||||||||||||||||
- ASUS Stainless-Steel Back I/O | |||||||||||||||||||||||||
ASUS Q-Design | |||||||||||||||||||||||||
- M.2 Q-Latch | |||||||||||||||||||||||||
- ASUS Q-DIMM | |||||||||||||||||||||||||
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |||||||||||||||||||||||||
- ASUS Q-Slot | |||||||||||||||||||||||||
ASUS Thermal Solution | |||||||||||||||||||||||||
- Aluminum M.2 heatsink | |||||||||||||||||||||||||
- Aluminum heatsink design | |||||||||||||||||||||||||
ASUS EZ DIY | |||||||||||||||||||||||||
- BIOS FlashBack™ button | |||||||||||||||||||||||||
- BIOS FlashBack™ LED | |||||||||||||||||||||||||
- Procool | |||||||||||||||||||||||||
AURA Sync | |||||||||||||||||||||||||
- AURA RGB header(s) | |||||||||||||||||||||||||
<span ",sans-serif;minor-latin;="" "times="" new="" "="" style='font-variant-ligatures: normal;font-variant-caps: normal; orphans: 2;text-align:start;widows: 2;-webkit-text-stroke-width: 0px; text-decoration-thickness: initial;text-decoration-style: initial;text-decoration-color: initial'>- Addressable Gen 2 RGB header(s) | |||||||||||||||||||||||||
Software Features | ASUS Exclusive Software | ||||||||||||||||||||||||
Armoury Crate | |||||||||||||||||||||||||
- AURA Creator | |||||||||||||||||||||||||
- AURA Sync | |||||||||||||||||||||||||
- Two-Way AI Noise Cancelation | |||||||||||||||||||||||||
AI Suite 3 | |||||||||||||||||||||||||
- Performance And Power Saving Utility | |||||||||||||||||||||||||
TurboV EVO | |||||||||||||||||||||||||
EPU | |||||||||||||||||||||||||
Digi+ VRM | |||||||||||||||||||||||||
Fan Xpert 4 | |||||||||||||||||||||||||
EZ update | |||||||||||||||||||||||||
ASUS CPU-Z | |||||||||||||||||||||||||
AI Charger | |||||||||||||||||||||||||
DAEMON Tools | |||||||||||||||||||||||||
DTS Custom for GAMING Headsets | |||||||||||||||||||||||||
Norton Anti-virus software (Free Trial version) | |||||||||||||||||||||||||
WinRAR | |||||||||||||||||||||||||
UEFI BIOS | |||||||||||||||||||||||||
ASUS EZ DIY | |||||||||||||||||||||||||
- ASUS CrashFree BIOS 3 | |||||||||||||||||||||||||
- ASUS EZ Flash 3 | |||||||||||||||||||||||||
- ASUS UEFI BIOS EZ Mode | |||||||||||||||||||||||||
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | ||||||||||||||||||||||||
Operating System | Windows® 11 64-bit, Windows® 10 64-bit | ||||||||||||||||||||||||
Form Factor | ATX | ||||||||||||||||||||||||
30.5cm x 24.4cm |
Similar Products
ASUS
Rs.135,000.00 Rs.150,000.00ASUS
Rs.289,000.00 Rs.304,000.00ASUS
Rs.76,000.00 Rs.80,000.00ASUS
Rs.145,000.00 Rs.151,000.00ASUS
Rs.217,000.00 Rs.224,000.00ASUS
Rs.159,000.00 Rs.166,500.00ASUS
Rs.102,000.00 Rs.104,500.00ASUS
Rs.295,000.00 Rs.306,500.00ASUS
Rs.120,000.00 Rs.124,000.00ASUS
Rs.195,000.00 Rs.199,000.00ASUS
Rs.106,000.00 Rs.110,500.00ASUS
Rs.132,000.00 Rs.139,000.00ASUS
Rs.177,500.00 Rs.185,000.00ASUS
Rs.79,000.00 Rs.81,000.00All Rights Reserved © 2024 Game Street | Designed & Developed By - CeyNet Software Solutions
© Designed & Developed By - CeyNet
